Concentricity measuring device - Basic device

Measuring device for determining concentricity, axial runout, straightness/parallelism on rotationally symmetrical parts

Measuring principle:

The test piece is turned on its own axis or moved longitudinally by hand and simultaneously scanned by a dial gauge

Features:

• Measuring carriage can be moved horizontally, allowing for straightness and parallelism of the test piece to be determined
• Test pieces can be quickly changed by swivelling out the dial gauge
• Angular adjustment of the measuring head
• Deflection lever for axial runout measurement and for measurement of spherical surfaces, running surfaces, bevel gears etc.

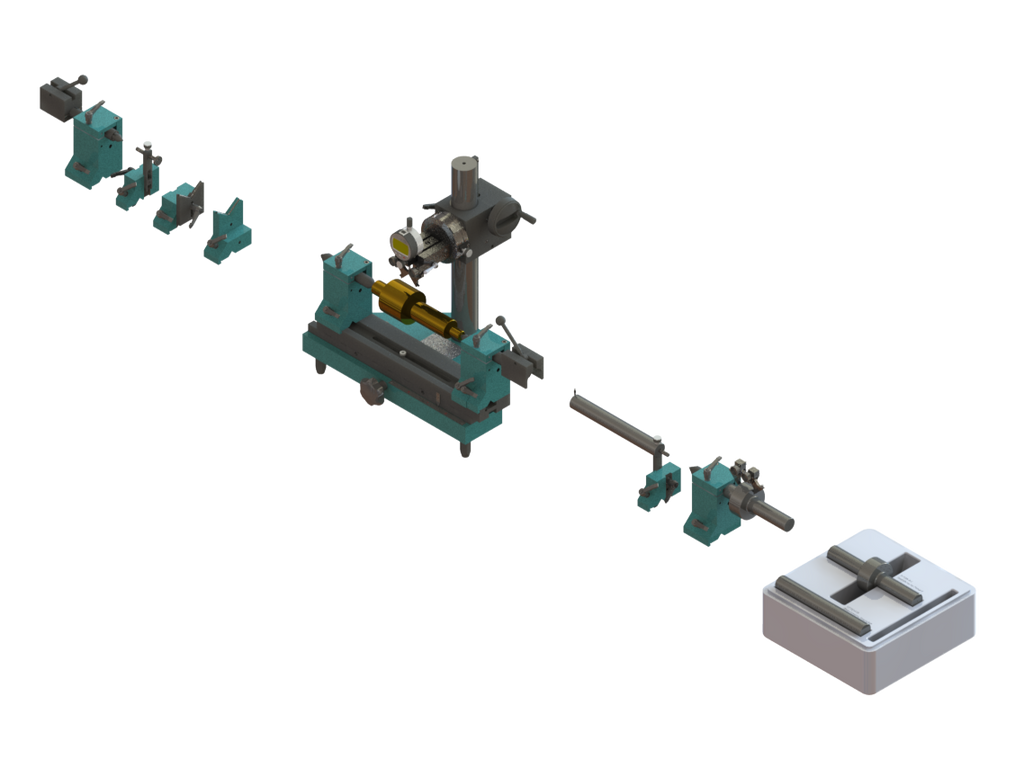

• Individual equipment with accessories

Attention!

• Accurate measurement of straightness/parallelism is only guaranteed if the test piece is clamped in blocks with tips.
• No changes may be made to the measuring head during a measurement (no height adjustment, no angle adjustment).

Scope of delivery:

- Basic unit BK720-100

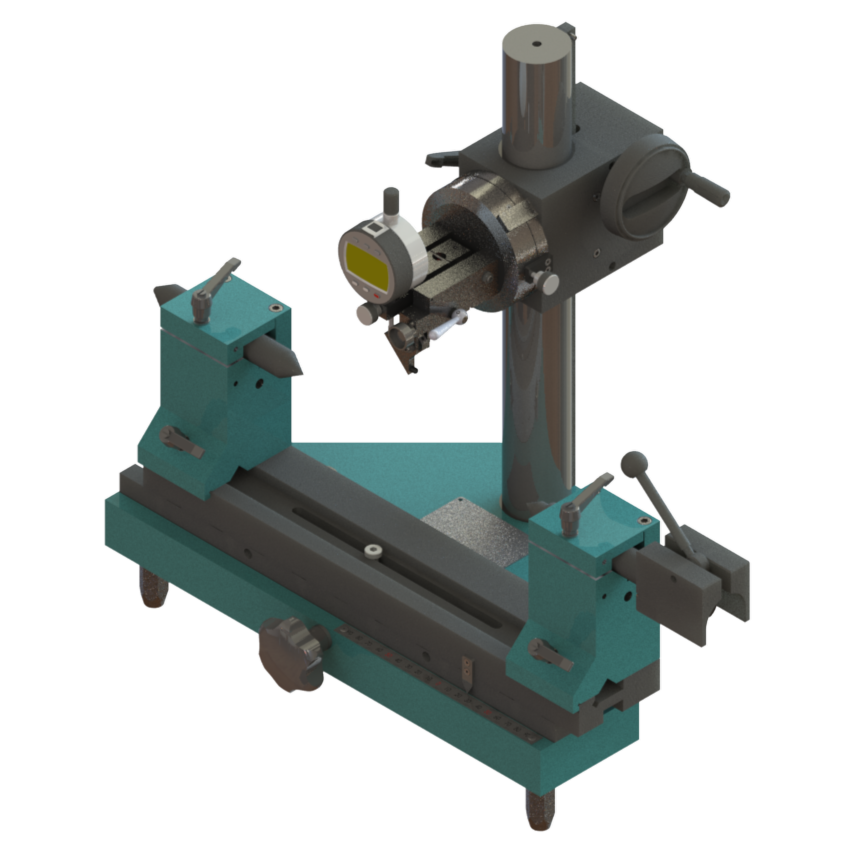

- Variant for mounting between centers: 1x center stand with fixed centering tip BK720-210 and 1x center stand with spring-loaded centering tip BK720-220

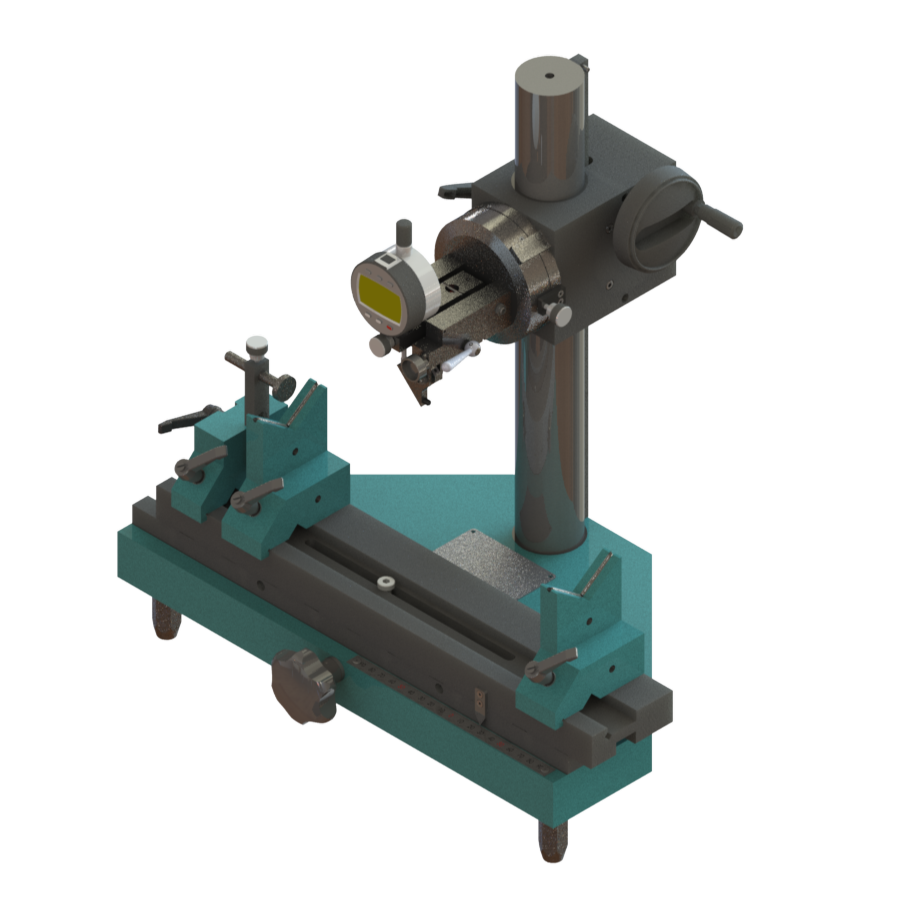

- Variant for mounting in a prism: 2x fixed prisms BK720-230 and 1x height-adjustable stop BK720-250

Right of withdrawal:

This product is not prefabricated and is customized for you; therefore, returns are not accepted.
